INDEX | Mould Information | |

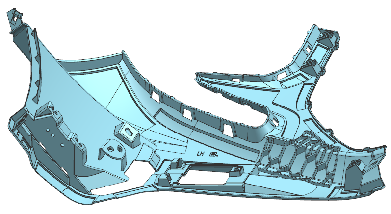

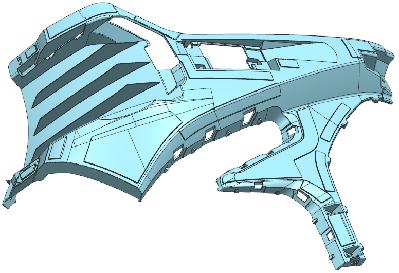

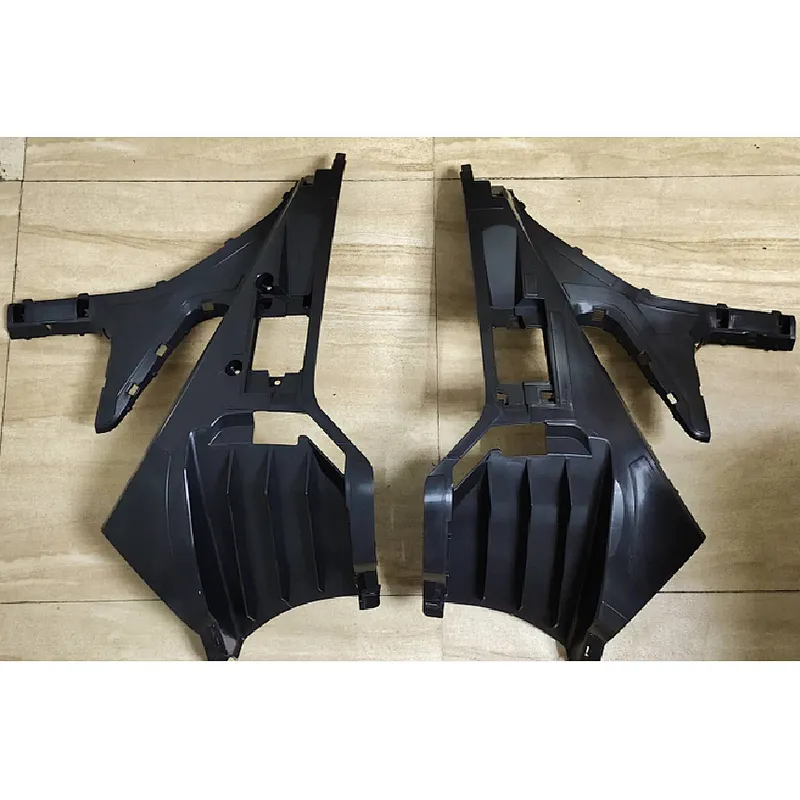

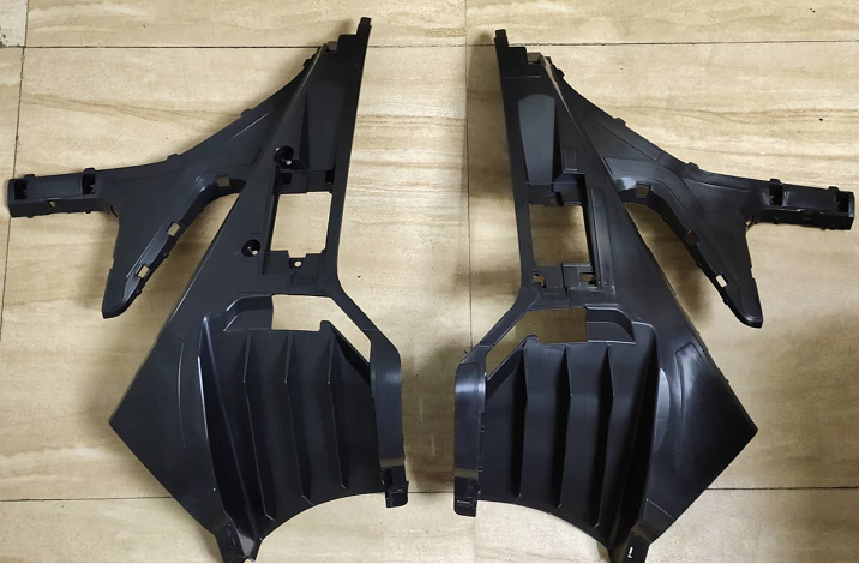

1 | Part Name | GMC Fascia Filler Reinforcement Bracket LH/RH |
2 | Molding Material: | ADX 2353/PP+EPDM-M12-T2 |
3 | Shrinkage Rate: | 0.55% |
4 | Part Size: | 549.09 X 710.71 X 213.64mm |
5 | Part Weight: | 742g |
6 | Cavity Nr: | 1+1 |
7 | Gate Type: | Side gate |

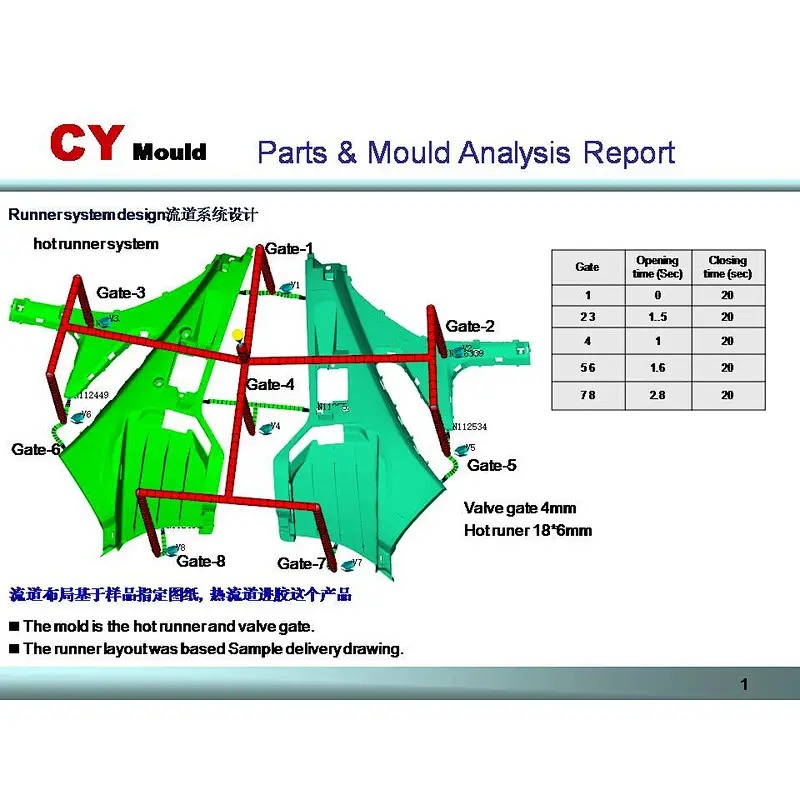

8 | Injection System: | INOCE svg hot tip |
9 | Cavity & Core: | ASSAB S136 SUP |
10 | Texture/Polish: | A1 polish |
11 | Mold Size: (mm) | 1300*1100*950mm |

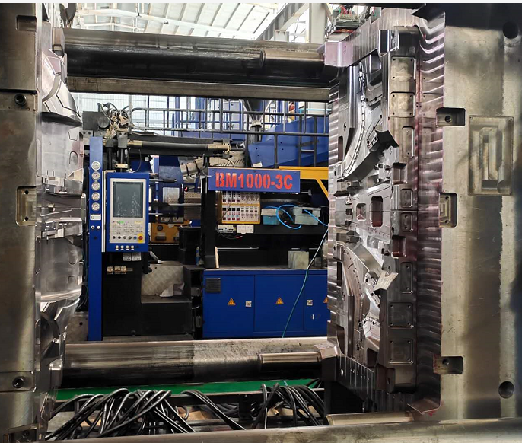

12 | Machine: (Ton) | 1000T |
13 | Cycle Time (sec): | 75’ |
14 | T1 Lead Time: | 9W |
15 | Export Country: | America |
Feature：

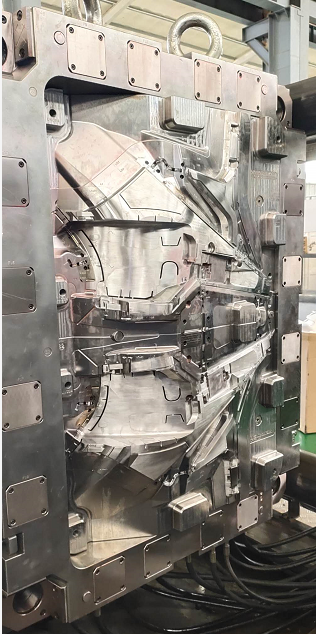

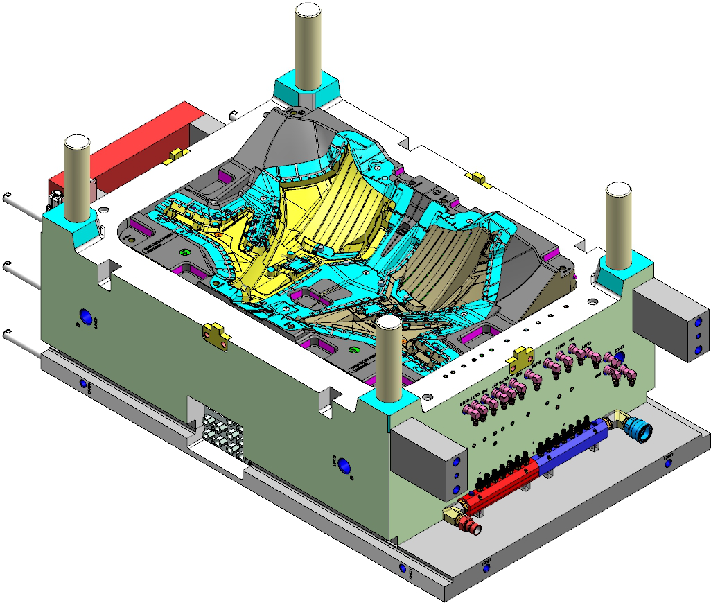

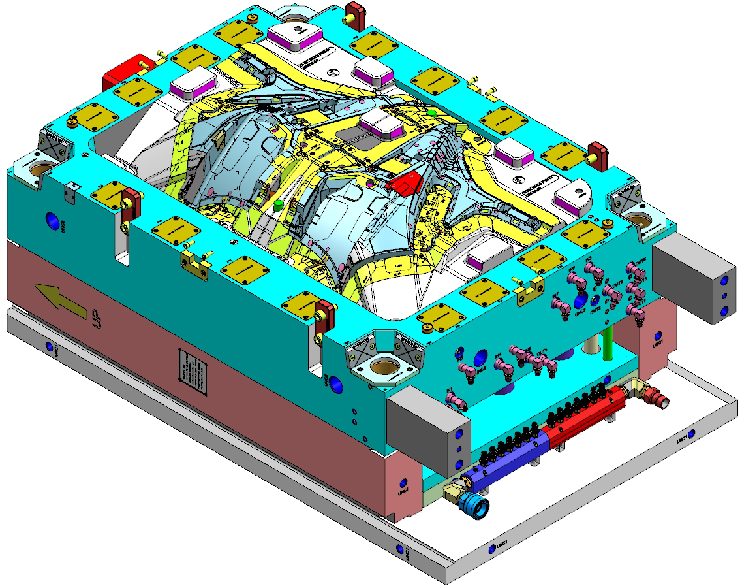

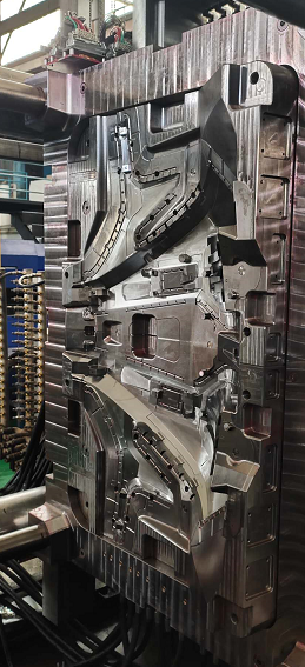

1.This mold is almost 2meter long. The mold has many inserts, the mold assembly is very complex , the location precison needs high requirement, long manufacturing procedure.
2. Mold Size is big, the part surface is curf, and easy deformed. Request each part dimension tolerance within 0.01mm, the mold trial request is very high.
3. Part size is big, and the measure of the part is tough as well.
