Automotive Lighting Parts

INDEX

Mould  Information

1

Part  Name

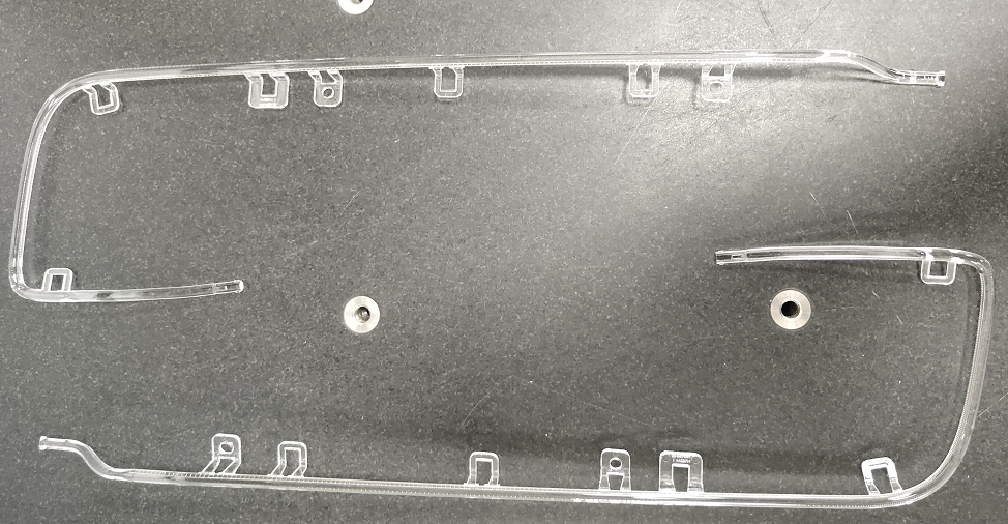

Light Pipe passenage

2

Molding Material:

PMMA

3

Shrinkage Rate:

1.004

4

Part  Size:

66.53 X 50.50 X 27.96mm

5

Part  Weight:

21.4g

6

Cavity Nr:

1+1

7

Gate Type:

Side gate

8

Injection System:

INOCE svg hot tip

9

Cavity & Core:

ASSAB S136  SUP

10

Texture/Polish:

A1 polish

11

Mold Size: (mm)

700*750*680mm

12

Machine: (Ton)

500T

13

Cycle Time (sec):

55’

14

T1 Lead Time:

6W

15

Export Country:

Mexico
