INDEX | Mould Information | |

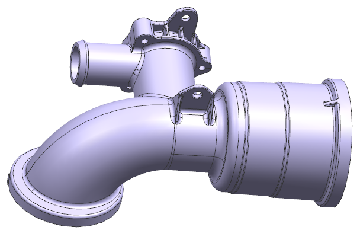

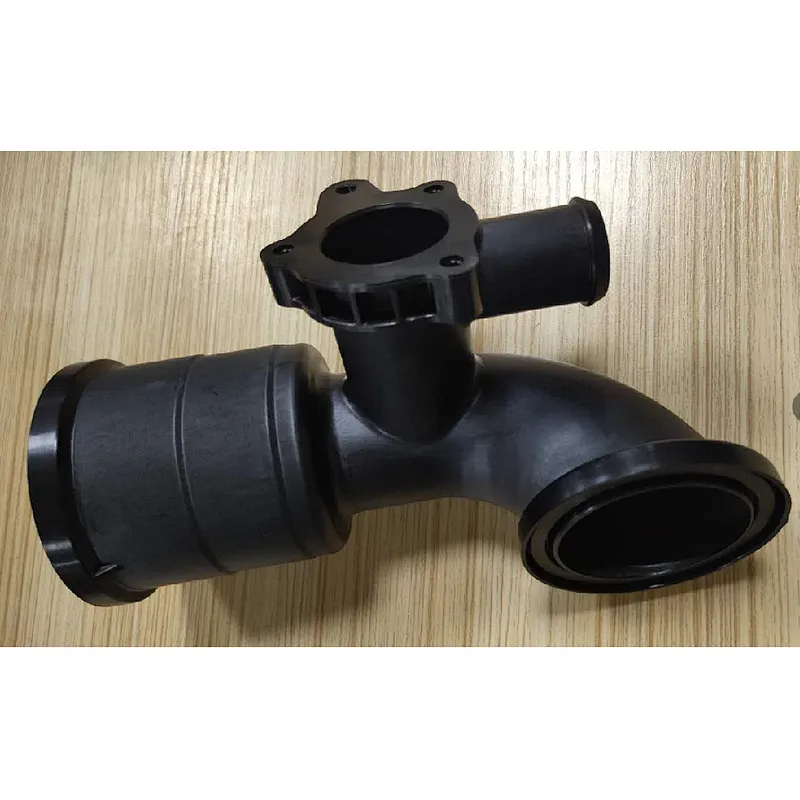

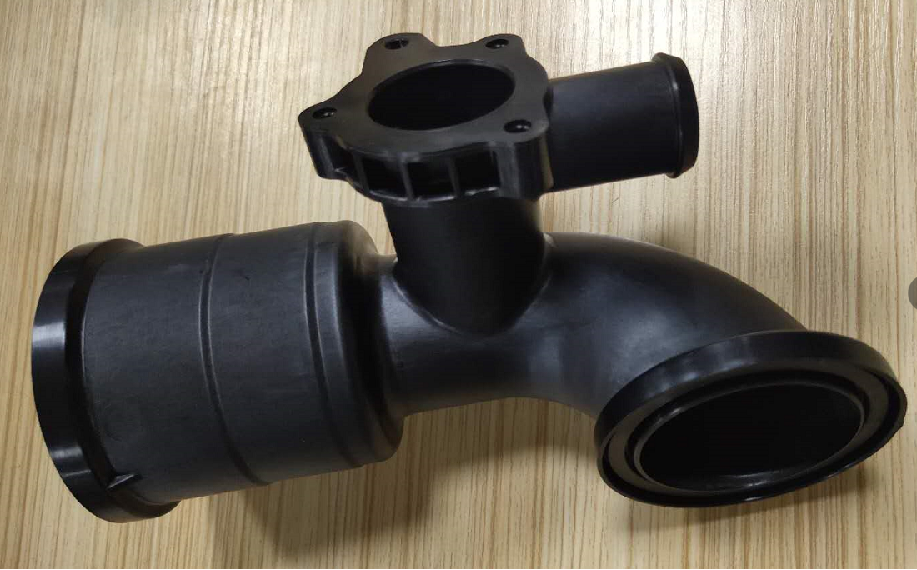

1 | Part Name: | IM Duct |
2 | Molding Material: | PA66+GF35 |
3 | Mold Base: | Hasco Equivalent |
4 | Cavity & Core Steel | P20 |
5 | Mold Service Life | 300,000 |
6 | Mold Type | 2 Plate Mold |
7 | Cavity Nr: | 1+1 |
8 | Gate Type: | needle valve gate |
9 | Injection System: | INCOE hot tip |
10 | Slide Lifter Qty | 2 |
11 | Texture/Polish: | 400# Grit |
12 | Mold Size: | 350*360*90mm |
13 | Mould Weight (kg) | 3366KG |
13 | T1 Lead Time: | 6 weeks |
14 | Export Country: | America |

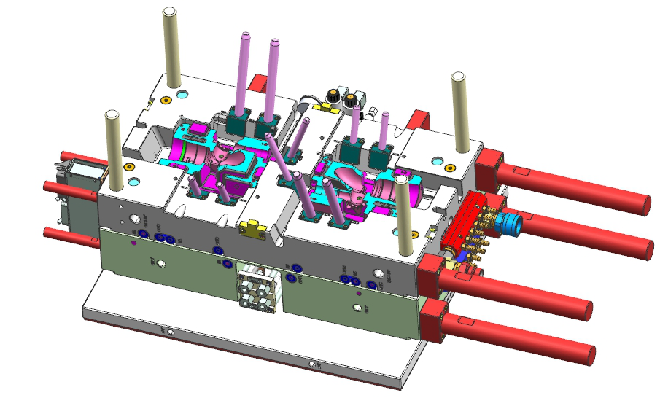

Feature：
1.ejector system: Using hydro-cylinder
2.The slider install and process require high precision;

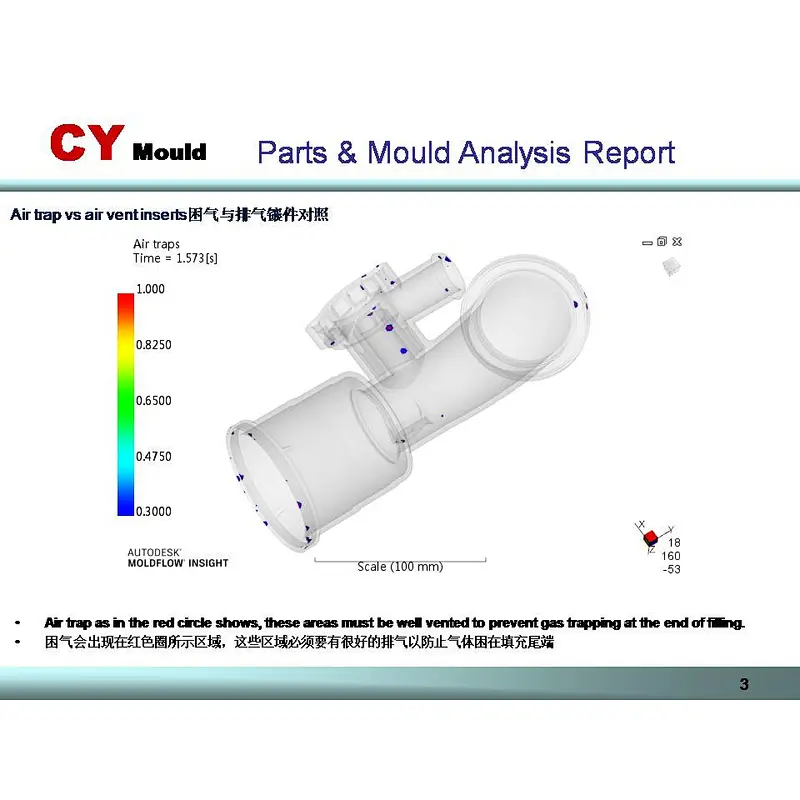

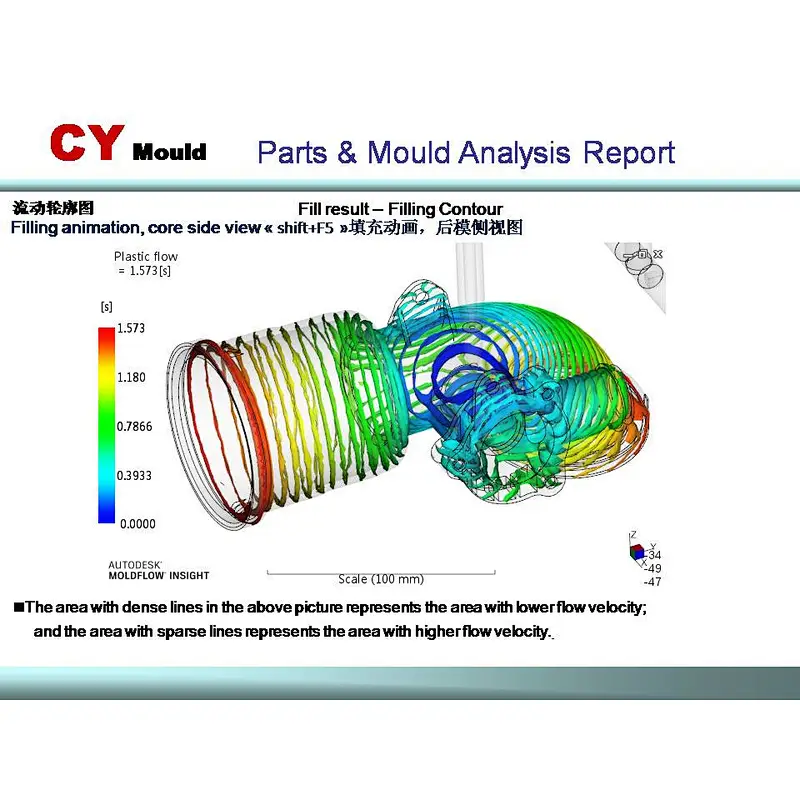

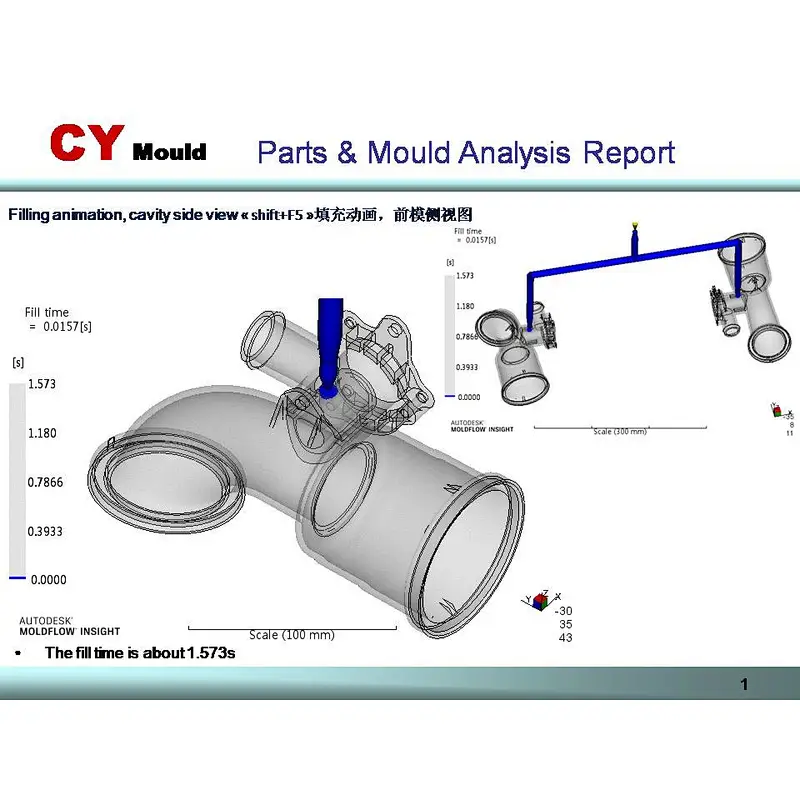

3.Filling require running balance
4. The emphasis of this mold is to be precise and complex for the machining.
