Precision mold

INDEX

Mould  Information

1

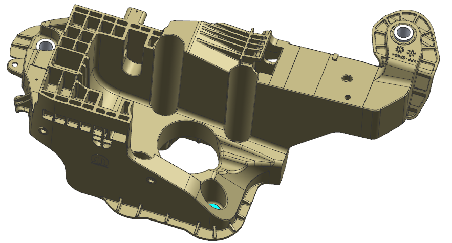

Part  Name

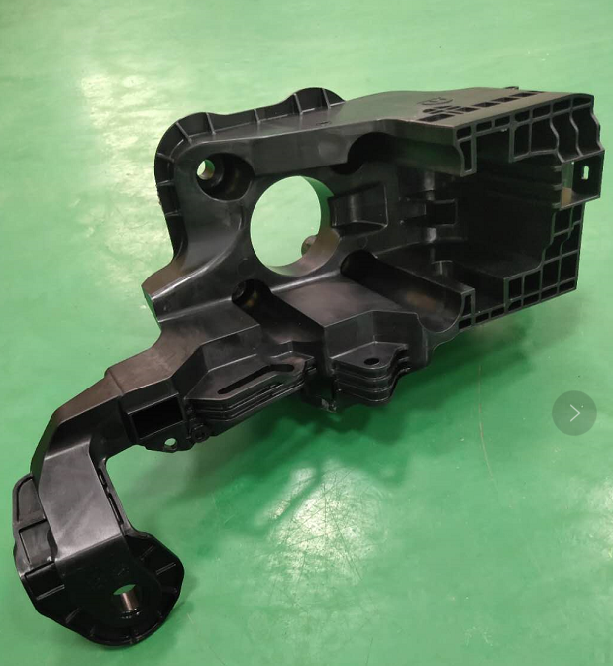

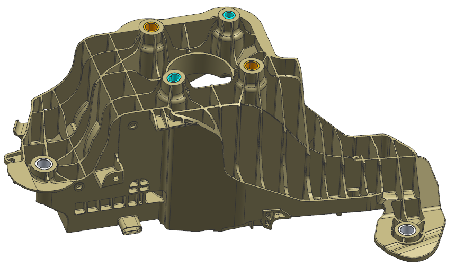

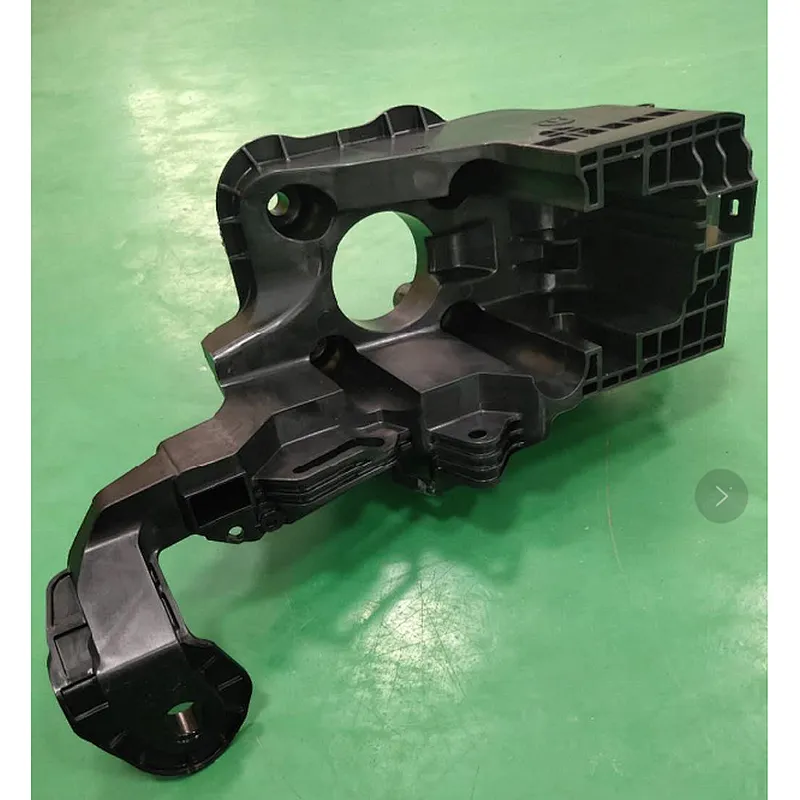

WS Fixed Bracket

2

Molding Material:

PP 40%GF

3

Shrinkage Rate:

1.002

4

Part  Size:

456*195*251mm

5

Part  Weight:

985g

6

Cavity Nr:

1*1

7

Gate Type:

Needle valve gate

8

Injection System:

INOCE svg hot tip

9

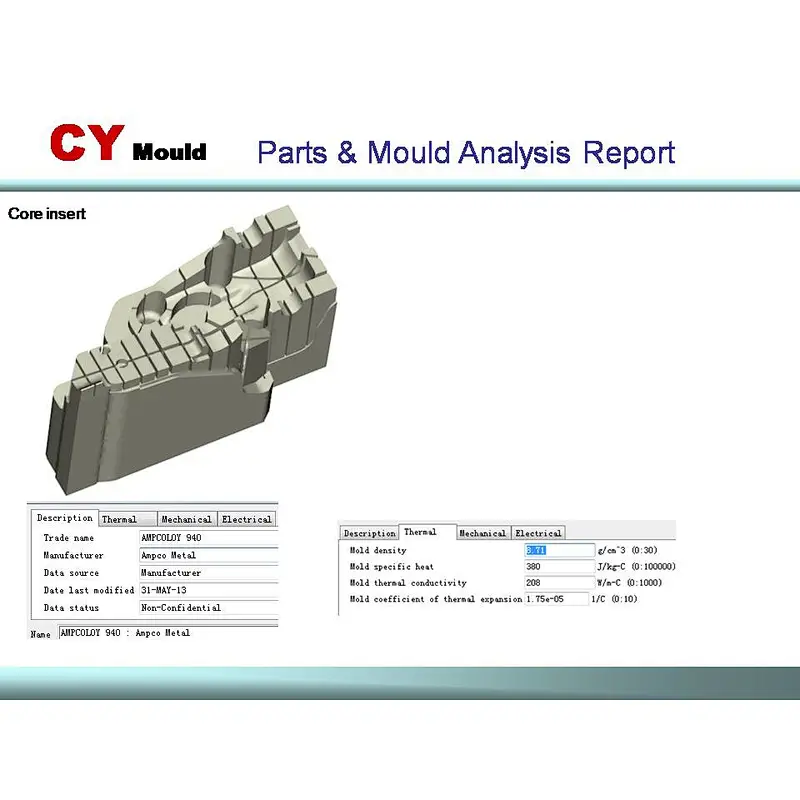

Cavity & Core:

AMPC083

10

Texture/Polish:

400# Grit

11

Mold Size: (mm)

650*600*580mm

12

Machine: (Ton)

800T

13

Cycle Time (sec):

65’

14

T1 Lead Time:

8W

15

Export Country:

Germany
