Precision mold

INDEX

Mould  Information

1

Part  Name

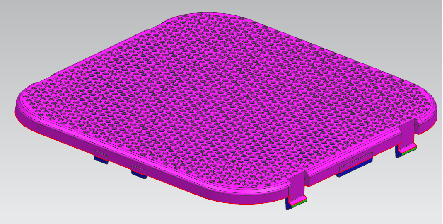

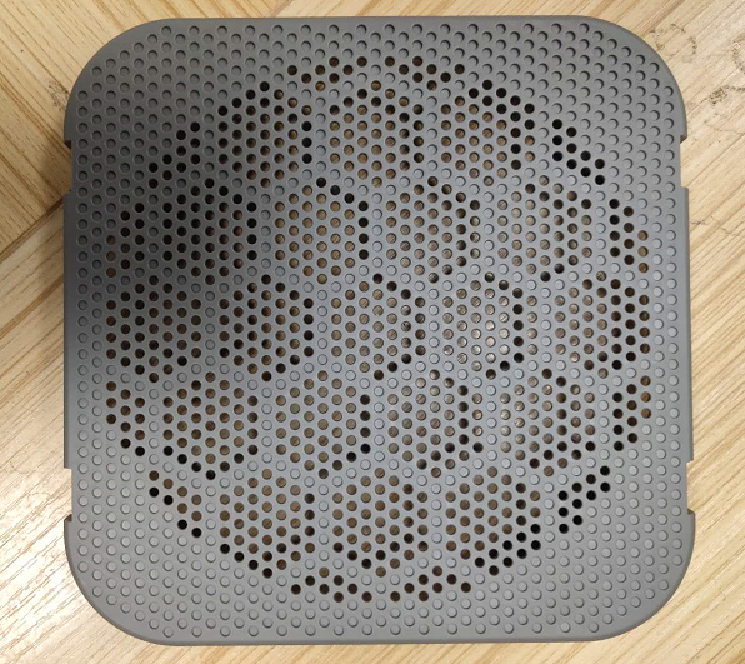

GRILLE B-PILLAR SPEAKER

2

Molding Material:

PP

3

Shrinkage Rate:

1.016

4

Part  Size:

158.4 X 158.6 X 17.1 mm

5

Part  Weight:

230g

6

Cavity Nr:

1*2

7

Gate Type:

cashew gate

8

Injection System:

INOCE hot tip

9

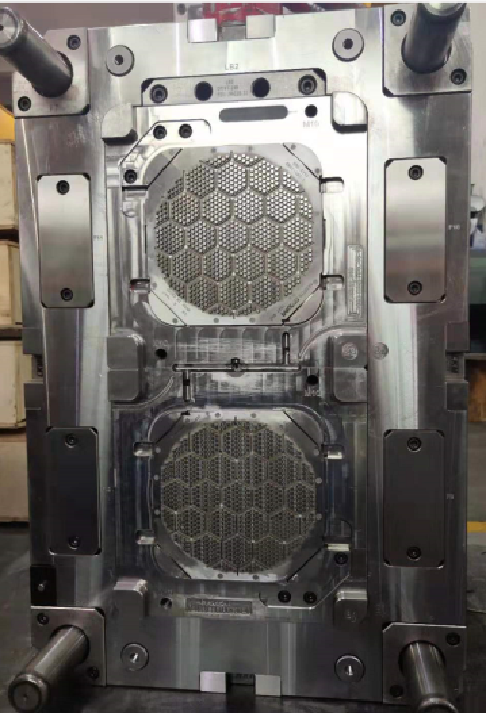

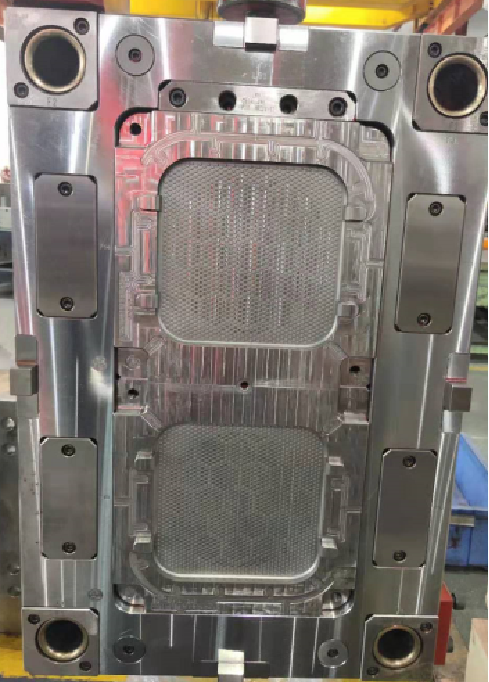

Cavity & Core:

ASSAB S136  SUP

10

Texture/Polish:

texture

11

Mold Size: (mm)

450*600*550mm

12

Machine: (Ton)

380T

13

Cycle Time (sec):

45’

14

T1 Lead Time:

6W

15

Export Country:

America
